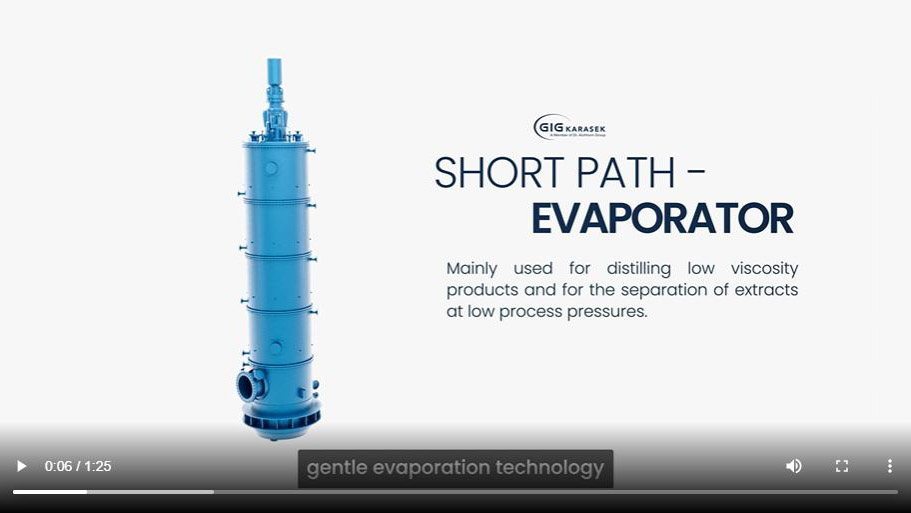

    Short-path Evaporator



    The shortest route to maximum evaporation performance when distilling and separating special media

    The GIG Karasek short-path evaporator has a particularly wide range of applications in the field of gentle evaporation of sensitive substances.

    This special apparatus is primarily used for the distillative purification of many challenging substances that could not be separated using conventional methods.

    The short-path evaporator can achieve an extremely fine vacuum for distillation at pressures as low as 0.001 mbar absolute.



    © GIG Karasek


    FunctionalPrinciple-ShortPathEvaporator_E

    © GIG Karasek

    Download brochure
    Our portfolio



    ADVANTAGES

    • Particularly gentle evaporation due to low pressure losses
    • High boilers do not reach the condenser thanks to efficient droplet separators
    • For the distillative purification of many challenging substances that cannot be separated using conventional thermal processes

    Book a meeting

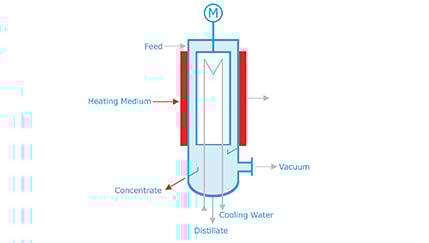

    Functional principle

    The basic functionality of our thin-film evaporators can also be found in our short-path evaporators. The difference is a condenser integrated into the device. This principle keeps the vapor path to the condenser particularly short, minimizes pressure losses, and enables operation in fine and high vacuums.

    Areas of application
    • Distillation of viscous media at low process pressure
      (0.001 to 1 mbara)
    • Production of ...
      • fatty acids
      • derivatives
      • semi-volatile flavorings
    • Separation of extracts
    • Distillation of ...
    Typical operating parameters
    • Temperature range: ≤ 390°C
    • Vacuum: ≥ 0,001 mbar
    • Feed: 10 kg/h to 20,000 kg/h
    • Viscosities: up to 10 Pa.s
      (in special cases up to 1,000 Pa.s at       20°C operating temperature)
